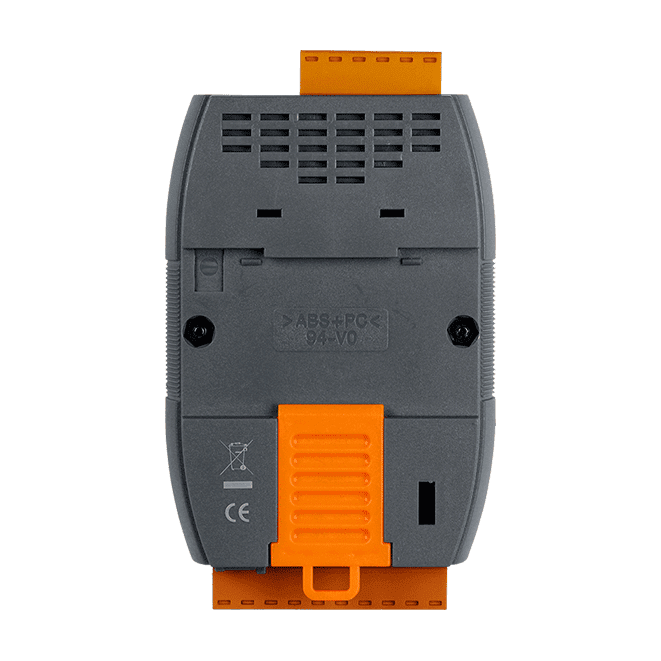

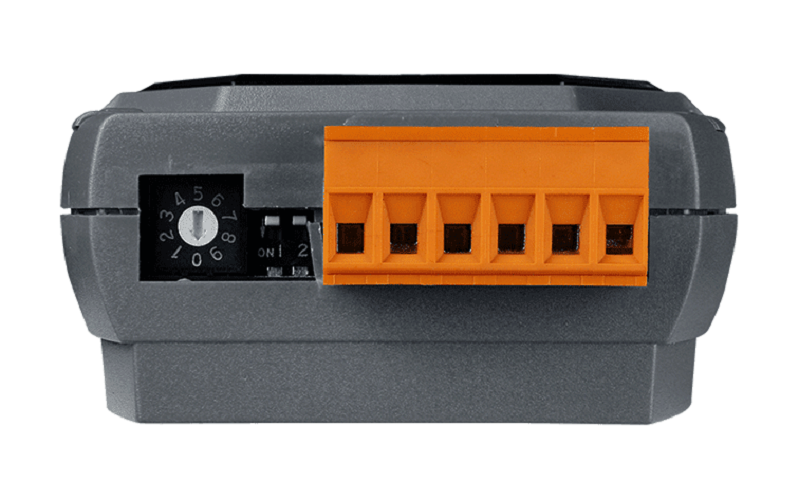

Isolated RS485 HUB
Product Details:
- Usage Automation Industry
- Size 72 x 35 x 122 (W x L x H)
- Weight 150 Grams (g)
- Product Type Repeater
- Color Gray
- Material Plastic
- Power 2.16 Watt (w)
- Click to View more
X
Isolated RS485 HUB Price And Quantity
- 10 Piece
Isolated RS485 HUB Product Specifications
- -25 ~ +75 Celsius (oC)
- Gray
- Automation Industry
- 72 x 35 x 122 (W x L x H)
- +10 VDC ~ +30 VDC (Non-isolated) Volt (v)
- Repeater
- Plastic
- 2.16 Watt (w)
- 1 Year
- 150 Grams (g)
Isolated RS485 HUB Trade Information
- Cheque
- 1000 Piece Per Month
- 4 Days
- Device
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
- All India
- CE/FCC/ROHS
Product Description
I-7513-G- Three Way Isolated RS-485 Active Star Wiring Hub.
Features
RS-485 Active Star Wiring Applications
Automatic RS-485 Direction Control
3000 VDC Three Way Isolation Protection
ESD Protection for the RS-485 Data Line
Introduction
The I-7513 is a 3-ch RS-485 Active Star Wiring Hub. The unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 4,000 ft (1200 m) of cable on each channel.
The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.
The isolation site of the I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.
| Isolation | |
|---|---|
| Three-way Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 Input (Master) 3 x RS-485 Output (Slave) |
| Baud Rate | 300 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC +30 VDC (Non-isolated) |
| Consumption | 2.16 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 +75 C |
| Storage Temperature | -30 +75 C |
| Humidity | 10 90% RH, Non-condensing |
