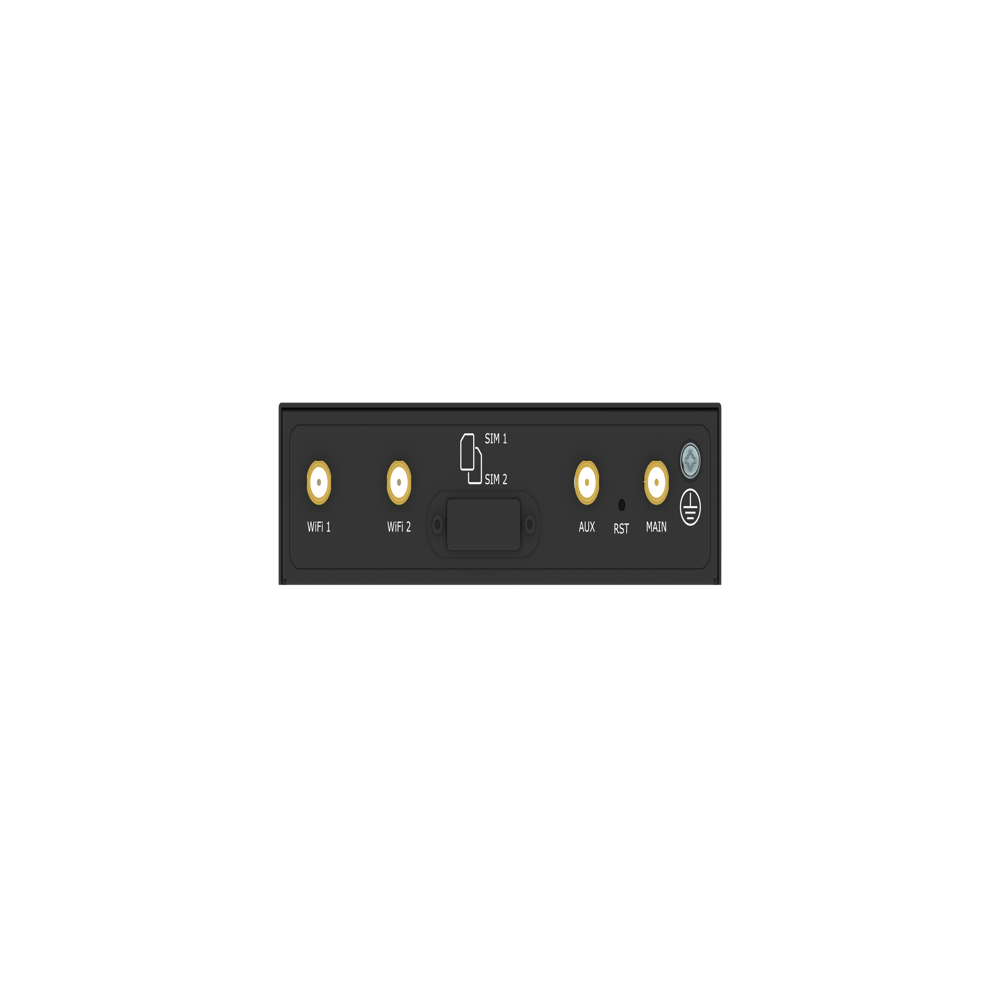

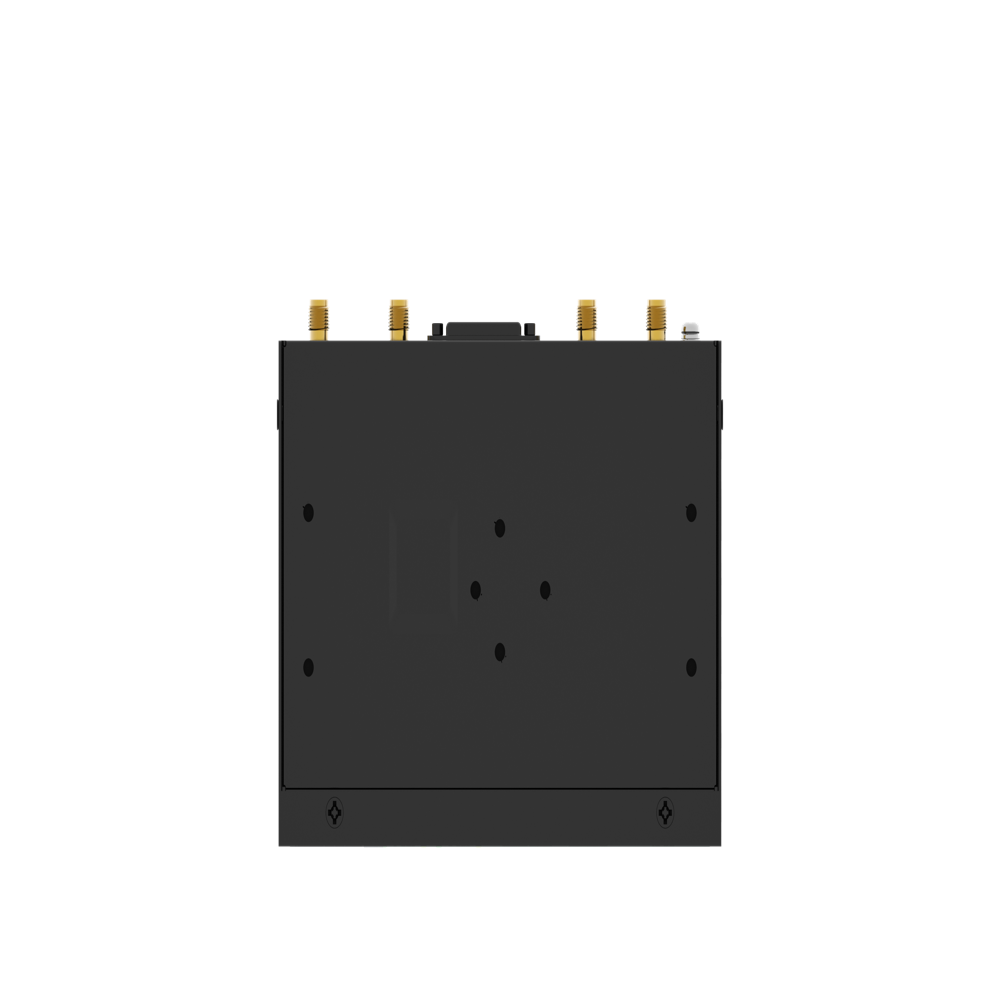

Industrial 4G Router
22000 INR/Piece
Product Details:
- Network Device Gateway
- Dimension (L*W*H) 127 x 82 x 30 mm Millimeter (mm)
- Power Consumption Idle: 60 mA@12 V Volt (V)
- Click to View more
X
Industrial 4G Router Price And Quantity
- 22000 INR/Piece
- 15000.00 - 25000.00 INR/Piece
- 10 Piece
Industrial 4G Router Product Specifications
- Gateway
- 127 x 82 x 30 mm Millimeter (mm)
- Idle: 60 mA@12 V Volt (V)
Industrial 4G Router Trade Information
- Cheque
- 1000 Piece Per Month
- 4 Days
- No
- Contact us for information regarding our sample policy
- Device and Antenna
- All India
- CE/FCC/ROHS
Product Description
Introduction:-
The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.
| Cellular Interface | |
| Number of antennas | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
| WAN port | Supports 802.3at PD feature (optional) |
| Magnet isolation protection | 1.5 KV |
| WiïFi Interface | |
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
| DI/DO | |
| Type | 1 x DI, 1 x DO |
| Connector | 1 x 4-pin 3.5 mm female socket |
| Signal definition | DI+, DI-, DO+, DO- |
| Level | 3.5 to 30V DC = HIGH, 0 to 1V DC = LOW |
| Absolute maximum VDC | 30V DC (DI/DO) |
| Absolute maximum ADC | 10mA (DI/DO) |
| Serial Interface | |
| Type | RS232 or RS485 (software configurable) |
| Connector | 1 x 3-pin 3.5 mm female socket |
| Signal definition | RS232: TXD, RXD, GND RS485: A, B |
| Others | |
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x MDM, 1 x WIFI, 3 x RSSI |
| Watchdog | Built-in |
| Power Supply and Consumption | |
| Connector | 2-pin 3.5 mm female socket |
| Input voltage | 9 -36 V DC |
| Power consumption | Idle: 60 mA@12 V |
| Data link: 580 mA (peak)@12 V | |
| Software (Basic features of RobustOS) | |
| Network protocols
|
PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE, WireGuard |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| Others | Smart Roaming v2, etc. |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 16 MB |
| RAM available for SDK | 64 MB |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 350 g |
| Dimensions | 127 x 82 x 30 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -35 +75ï |
| Storage temperature | -40 +85ï |
| Relative humidity | 5% 95% RH |
| Regulatory and Type Approvals | |
| Environmental | RoHS 2.0 |
| EMI | EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B |
| EMS | EN 61000-4-2 (ESD) Level 4
EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 |
